TAHSER Screw Compressors Free Air Delivery (FAD) Table |
|||||
|
Model |
7 bar |
8 bar |
10 bar |

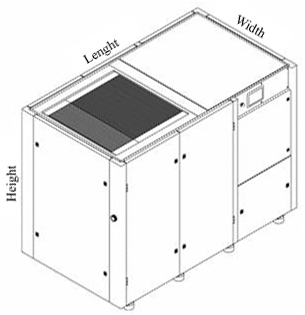

Enclosure |
kW |
|
R 10 |
1.3 m3/min |
1.1 m3/min |
0.9 m3/min |
011 |
7.5 |
|
R 15 |
1.9 m3/min |
1.7 m3/min |
1.4 m3/min |
011 |
11 |
|
R 20 |
2.5 m3/min |
2.3 m3/min |
2 m3/min |
101 |
15 |
|
R 21 |
2.7 m3/min |
2.5 m3/min |
1.9 m3/min |
201 |
15 |
|
R 25 |
3.1 m3/min |
2.9 m3/min |
2.5 m3/min |
101 |
18.5 |
|
R 26 |
3.4 m3/min |
3.2 m3/min |
2.6 m3/min |
201 |
18.5 |
|
R 30 |
3.6 m3/min |
3.4 m3/min |
2.9 m3/min |
101 |
22 |
|
R 31 |
3.9 m3/min |
3.7 m3/min |
3.1 m3/min |
201 |
22 |
|
R 40 |
5.3 m3/min |
5 m3/min |
4.3 m3/min |
201 |
30 |
|
R 41 |
5.8 m3/min |
5.5 m3/min |
4.7 m3/min |
301 |
30 |
|
R 50 |
6.2 m3/min |
5.9 m3/min |
5.2 m3/min |
201 |
37 |
|
R 51 |
6.6 m3/min |
6.2 m3/min |
5.7 m3/min |
301 |
37 |
|
R 60 |
6.9 m3/min |
6.7 m3/min |
6 m3/min |
201 |
45 |
|
R 61 |
8.2 m3/min |
7.6 m3/min |
6.7 m3/min |
301 |
45 |
|
R 75 |
9.5 m3/min |
9 m3/min |
8 m3/min |
301 |
55 |
|
R 76 |
10.9 m3/min |
10.5 m3/min |
9 m3/min |
301 |
55 |
|
R 100 |
12.1 m3/min |
11.8 m3/min |
10.4 m3/min |
301 |
75 |
|
R 101 |
13.5 m3/min |
13 m3/min |
11.3 m3/min |
401 |
75 |
|
R 125 |
16.1 m3/min |
15.6 m3/min |
13.5 m3/min |
401 |
90 |
|
R 126 |
17 m3/min |
16.4 m3/min |
14.5 m3/min |
501 |
90 |
|
R 150 |
18.9 m3/min |
18.2 m3/min |
16.2 m3/min |
401 |
110 |
|
R 151 |
21 m3/min |
20 m3/min |
17.1 m3/min |
501 |
110 |
|
R 180 |
24.2 m3/min |
23.5 m3/min |
20.7 m3/min |
501 |
132 |
|
R 220 |
28.9 m3/min |
27.8 m3/min |
25 m3/min |
501 |
160 |
|
|
|
||||||||||||||||||||||||||||||||
